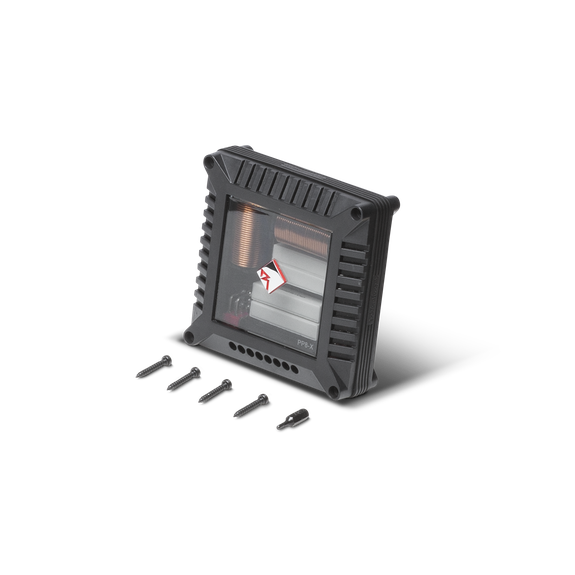

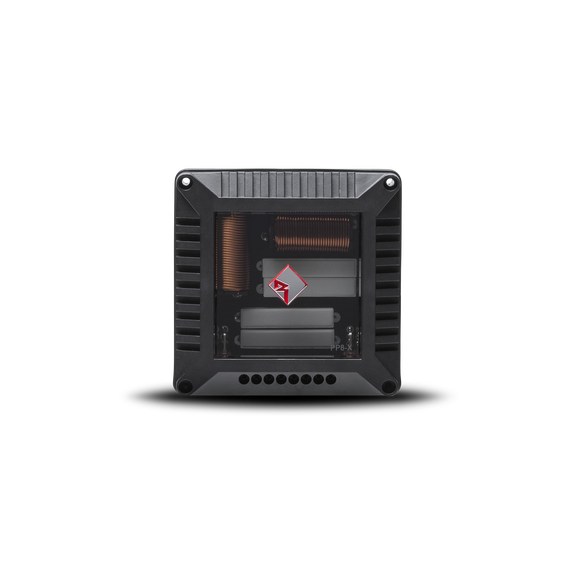

Rockford Fosgate PP4-X Punch Pro Passive Crossover
The Rockford Fosgate PP4-X is a purpose-built passive crossover designed to get the most out of Rockford Fosgate Punch Pro 4-ohm midrange speakers and tweeters. Engineered for high-output applications, the PP4-X provides proper frequency separation while giving you control over tweeter output to help fine-tune your system.
The crossover features a 3 kHz low-pass filter with a 6 dB/octave slope for the midrange/woofer section and dual woofer outputs, allowing a pair of Punch Pro midrange drivers to be connected. The tweeter section includes selectable impedance and 0 dB, -3 dB, or -6 dB attenuation, making it easy to tailor the high-frequency output to your vehicle and listening preference.
The PP4-X is rated for 125 watts RMS / 250 watts maximum and is designed specifically for use with Rockford Fosgate Punch Pro components. It works with the built-in crossover supplied with compatible Punch Pro tweeters.
Features
- Designed for Rockford Fosgate Punch Pro 4-ohm midrange speakers
- Compatible with PP4-T and PP8-T Punch Pro tweeters
- 3 kHz low-pass filter at 6 dB/octave
- 125 watts RMS / 250 watts maximum power handling
- Dual midrange/woofer outputs
- Selectable tweeter impedance
- Selectable tweeter attenuation: 0 dB, -3 dB, or -6 dB

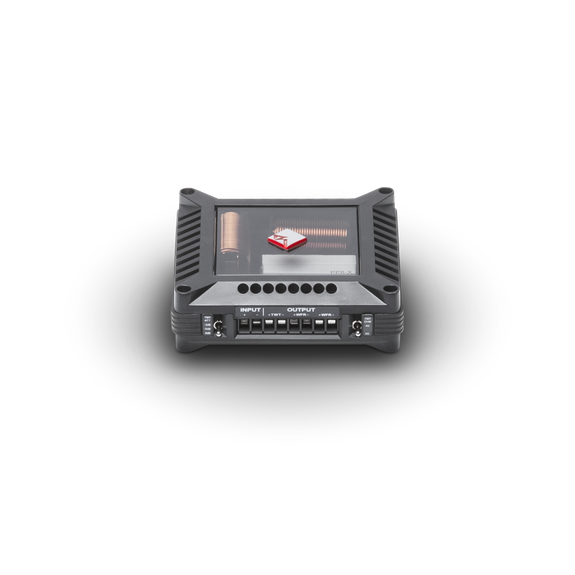

- Screw-terminal connections
