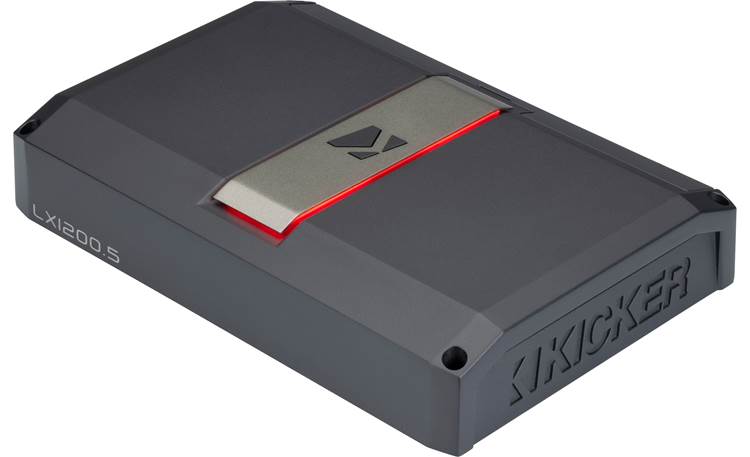

Built like a tank packed with sound-shaping capabilities and ready for action, Kicker's LX1200.5 multi-channel amplifier features customizable digital signal processing and high output power, so you'll experience high-quality enjoyment every time you listen to a song. The amp looks as good as it sounds, sporting adjustable RGB accent lighting and a slick reversable cover plate displaying the Kicker logo.
Fits in with factory systems
This LX-Series amplifier features Kicker's FIT+™ technology, which enables it to easily integrate into almost any factory stereo, and comes with high-level speaker wire input adapters to simplify installation. The amp's gain controls feature built-in clip lights which aid in setting the gain properly.
RMS Power
The LX1200.5 has five powered output channels designed to drive four full-range speakers with 125 watts each, and a subwoofer with up to 700 watts. You can also bridge the front and rear amp channel pairs together to power two high-performance drivers with 350 watts RMS each while still powering a sub with 700 watts.
LXCC DSP controller
LX Control Center digital processing
You won't need to use your laptop or phone or download any complicated DSP tuning app because the LX1200.5 comes with an LXCC plug-in control console for dialing in and displaying the channel settings, tones, frequencies, timing, and other digital signal processing data needed to create the perfect sound. Tuning options include selectable crossover types and slopes, channel level balancing and fine-tuning, and time-delay for the left channels to match the right. There's also a KickEQ+™ parametric bass boost and phase control switch for the subwoofer channel.
Bass tuning and other remote features
After setup, you'll unplug the LXCC and plug in the amp's LXRC remote control. This wired remote controls the subwoofer level, and displays the system voltage, controls the amp's RGB brightness, and can add low-frequency content to bass-poor recordings using Kicker's SHOCwave2.0™ digital bass restoration algorithm.
LXRC bass knob
Product highlights:
5-channel car amplifier with digital signal processing
125 watts RMS x 4 + 300 watts RMS x 1 at 4 ohms
175 watts RMS x 4 + 550 watts RMS x 1 at 2 ohms
350 watts RMS x 2 bridged at 4 ohms + 700 watts RMS x 1 at 1 ohm
Class D amp technology
frequency response: 20-20,000 Hz
channel gain knobs with clip lights
adjustable RGB LED accent lighting and reversible center panel with Kicker logo
LXCC Control Center:
plug in for amp setup only — unplug during normal operation
dimensions: 5.9"W x 3.4"H x 1.3"D with 39.3" cable
LCD screen with 4 function/adjustment controls and 4 option selectors
displays amplifier ID, system voltage, amplifier temperature (C°)
Gain Trim
fine-tune channel gains for balance: -9 to +3 dB
Hi-Pass
adjustable frequency: 20-5000 Hz for AMP 1-2; 10-80 Hz, 24 dB/oct (subsonic filter) for SUB
selectable crossover type: Linkwitz-Riley or Butterworth
selectable crossover slope: 12, 18, or 24 dB/octave
Lo-Pass
adjustable frequency: 40-5000 Hz for AMP 1-2; 40-160 Hz for SUB
selectable crossover type: Linkwitz-Riley or Butterworth
selectable crossover slope: 12, 18, or 24 dB/octave
Time Delay
adjustable delay time for AMP 1-2 left channels: milliseconds
switchable phase for SUB
adjustable KickEQ+ parametric bass boost for SUB: 0-6 dB at 20-80 Hz, 1-5 bandwidth
Channel Mode
select Stereo, Mono (L+R), or Mono (L-R)
LXRC wired remote control:
plug in for normal operation — unplug during amp setup
functions include subwoofer volume control
clip indicator LED
SHOCwave2.0T sub-harmonic bass restoration
graphic battery voltage meter
controls RGB LED brightness
More info:
compatible with start-stop vehicle systems

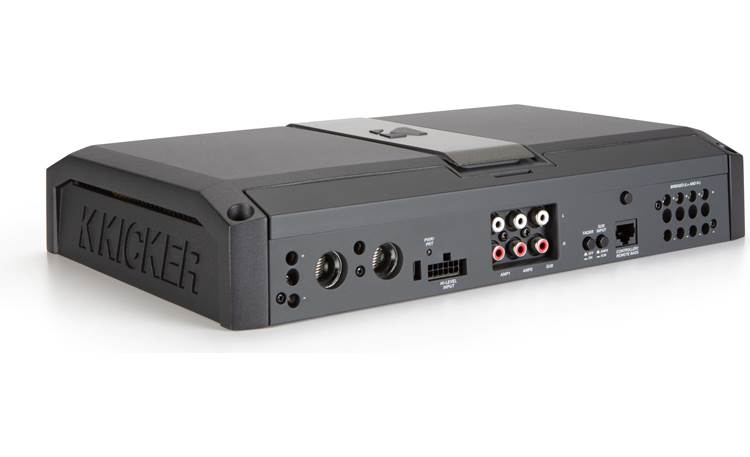

preamp and speaker-level inputs
speaker wire adapters included
speaker-level inputs handle up to 40V (400W)
signal-sensing turn-on with speaker-level input
wiring, fuse, and hardware not included with amplifier
1/0-gauge amp wiring kit with fuse or 1/0-gauge power and ground leads with a 100-amp fuse recommended
dimensions: 12.63"W x 2.43"H x 8.42"D
warranty: 2 years (extends to 3 years when purchased with a Kicker 1/0-gauge wiring kit)
